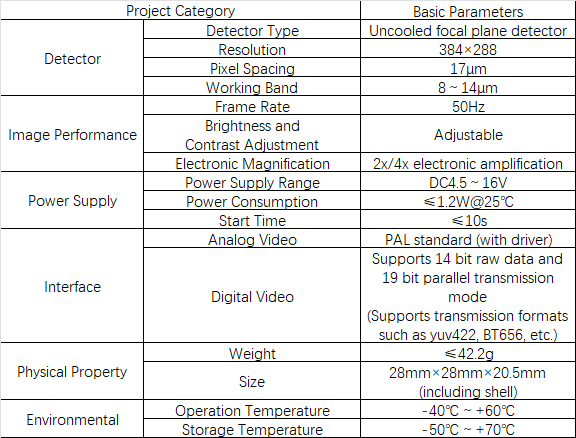

E02 is an industrial-grade infrared thermal imager module designed for integrated industrial applications. It features a 384×288 resolution uncooled focal plane array detector with a 17μm pixel pitch and a 8–14μm long-wave infrared response band. The module supports high-frame frequency output at 50Hz, 2x/4x electronic zoom, and flexible brightness and contrast adjustment, providing parallel output of PAL analog video and 14-bit raw data (supporting digital formats such as YUV422, BT656, etc.). Its low power consumption is as low as 1.2W, with a startup time of no more than 10 seconds, and a weight of only 42.2g. The dimensions are 28×28×20.5mm (including housing), and it can operate stably in a wide temperature environment of -40℃ to +60℃. It is powered by DC4.5～16V and is widely applicable to industrial inspection, security monitoring, intelligent manufacturing, and embedded system integration.
Why choose the E02 Thermal Imager with Mounting Accessories?
E02 is an ideal choice for a variety of industrial vision applications with its high degree of integration, multi-interface compatibility, and excellent environmental adaptability. Its ultra-lightweight design and clamp-type installation characteristics allow flexible integration into fixed fixtures, mobile platforms, or automated equipment, providing stable, clear, and low-latency infrared image output for Industry 4.0 and intelligent manufacturing, significantly reducing system integration complexity and accelerating your product to market.
We provide complete technical documentation, SDK support and customization services. Welcome to contact our business team for detailed information or to apply for a test sample.
