UC01 Uncooled Infrared Core Component - Ultra High Resolution Thermal Imager Core

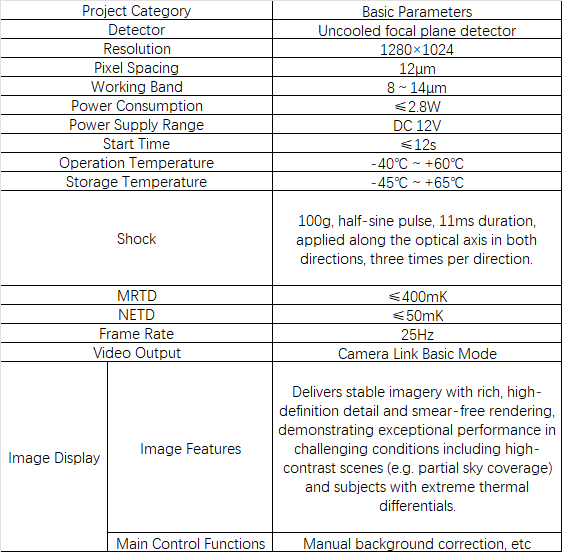

UC01 is a professional-grade, non-cooled infrared core component featuring a 1280×1024 ultra-high resolution focal plane detector with a pixel pitch of only 12μm, operating in the 8–14μm long-wave infrared band. It offers superior thermal sensitivity (NETD≤50mK) and spatial resolution (MRTD≤400mK), supports 25Hz high frame rate output and Camera Link basic mode video interface. The core consumes only 2.8W of power, has a startup time of no more than 12 seconds, and can operate stably in a wide temperature range of -40℃ to +60℃, and has passed the 100g impact test. It can output stable images with rich details and no tailing even in extreme scenarios such as half the sky and large target temperature differences, making it an ideal core component for integration into high-end thermal imaging systems.
Why choose the UC01 infrared module?
UC01 offers a reliable core visual component for high-end thermal imaging systems with ultra-high resolution, outstanding temperature sensitivity, and strong environmental adaptability. Whether you are developing next-generation military equipment, industrial inspection instruments, or scientific observation devices, it can provide clear, stable, and high-contrast infrared image output, significantly enhancing the overall system's perception capability and analysis accuracy.
We provide complete technical documentation, interface protocols, and integration support services. Welcome to contact our engineering team for detailed information, SDK tools, or to apply for a sample machine test.
