D03 High-end Portable Infrared Thermal Imager — Ultra High Definition Thermal Imaging and Accurate Temperature Measurement Expert

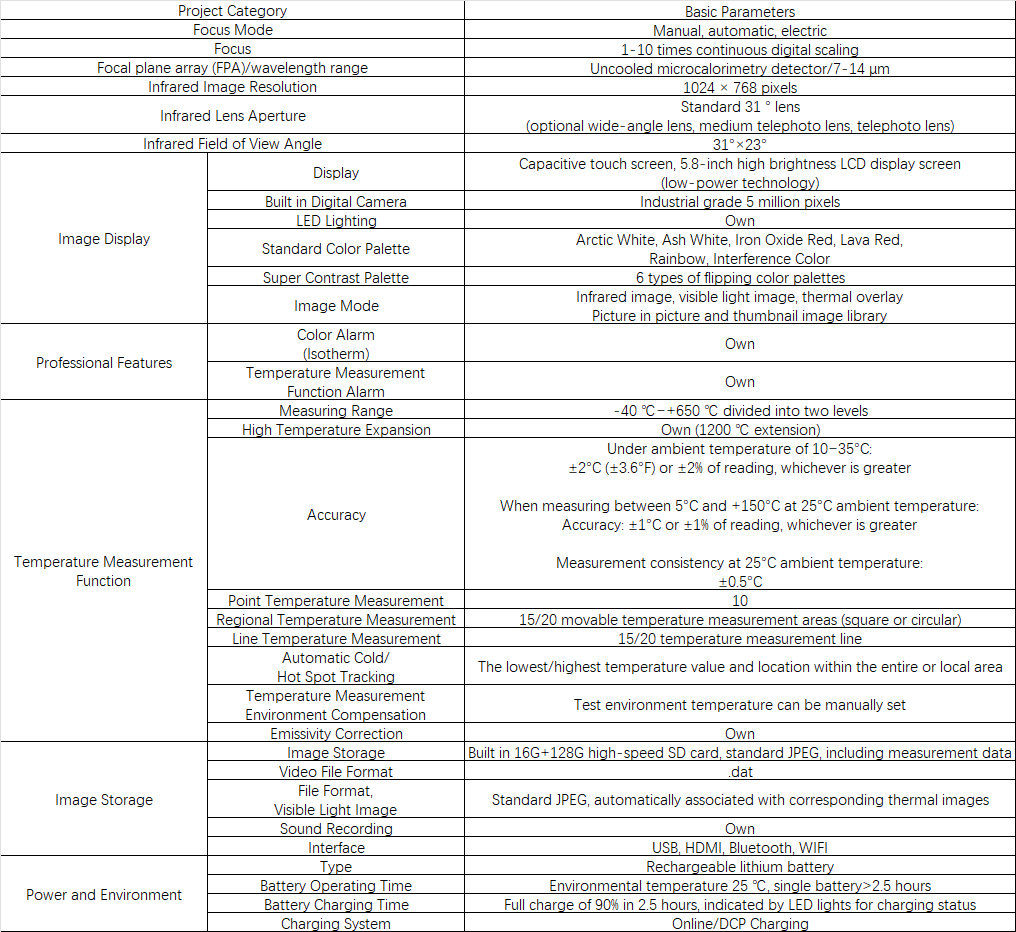

D03 High-end portable infrared thermal imager with temperature measurement uses a 1024×768 ultra-high resolution uncooled microbolometer detector, combined with a 7-14μm wavelength range and a standard 31° lens (optional wide-angle, medium-long focal length, and telephoto lenses), providing a wide field of view of 31°×23°. The device integrates a 5.8-inch high-brightness capacitive touch screen and a 5-megapixel built-in digital camera, supporting manual, automatic, and electric focusing, and has a 1-10x continuous digital zoom capability. It provides 6 professional color scales and multi-mode image display, with a temperature measurement range covering -40℃～+650℃ (can be extended to 1200℃), and a temperature measurement accuracy of ±0.5℃ at 25℃. It supports point, area, line, and other multi-dimensional temperature measurement methods, equipped with automatic cold and hot spot tracking, emissivity correction, and environmental temperature compensation functions. It has built-in 16G+128G storage, supports USB, HDMI, Bluetooth, WiFi and other transmission methods, and is widely applicable to industrial research and development, high-end inspection and scientific research institutes and other fields.
Why choose the D03 thermal imager?
D03 integrates ultra-high resolution, laboratory-level temperature measurement accuracy, and professional analysis functions in one device, equipped with a variety of data transmission interfaces and a large-capacity storage system. It can not only meet the convenience requirements of on-site detection but also meet the high-precision analysis needs of the laboratory. Whether it is a complex industrial research and development environment or a harsh scientific research application scenario, it can provide reliable and accurate thermal data support, helping users deeply understand the essence of thermal phenomena, and improve research and development efficiency and detection reliability.
We provide full technical support, professional training services, and customized solutions. Welcome to contact our technical team to obtain detailed product information, schedule a demonstration, or apply for a sample machine test.
